AUTOMATED DRONE HANGER

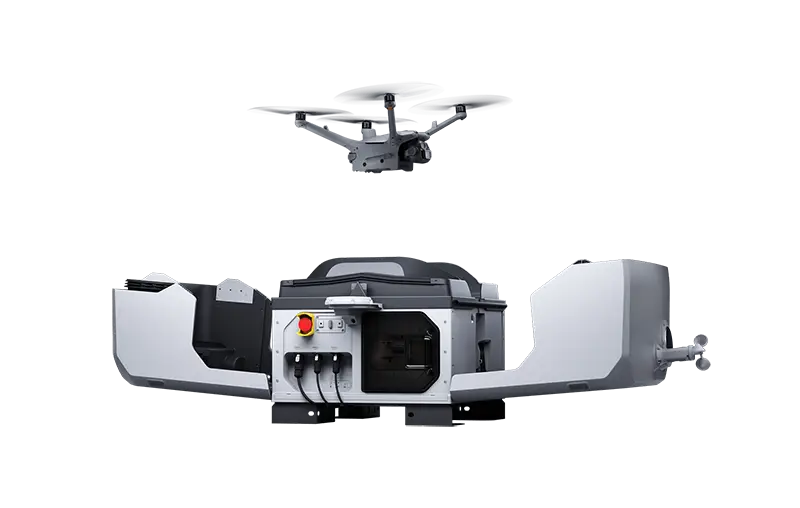

Equipped with Matrice 4D or Matrice 4TD high-performance drones, DJI Dock 3 empowers 24/7 remote operations and, for the first time, supports mobile vehicle-mounted deployment, effortlessly adapting to various environments.
The Matrice 4E is designed for geospatial applications such as surveying and mapping, construction, and mining.

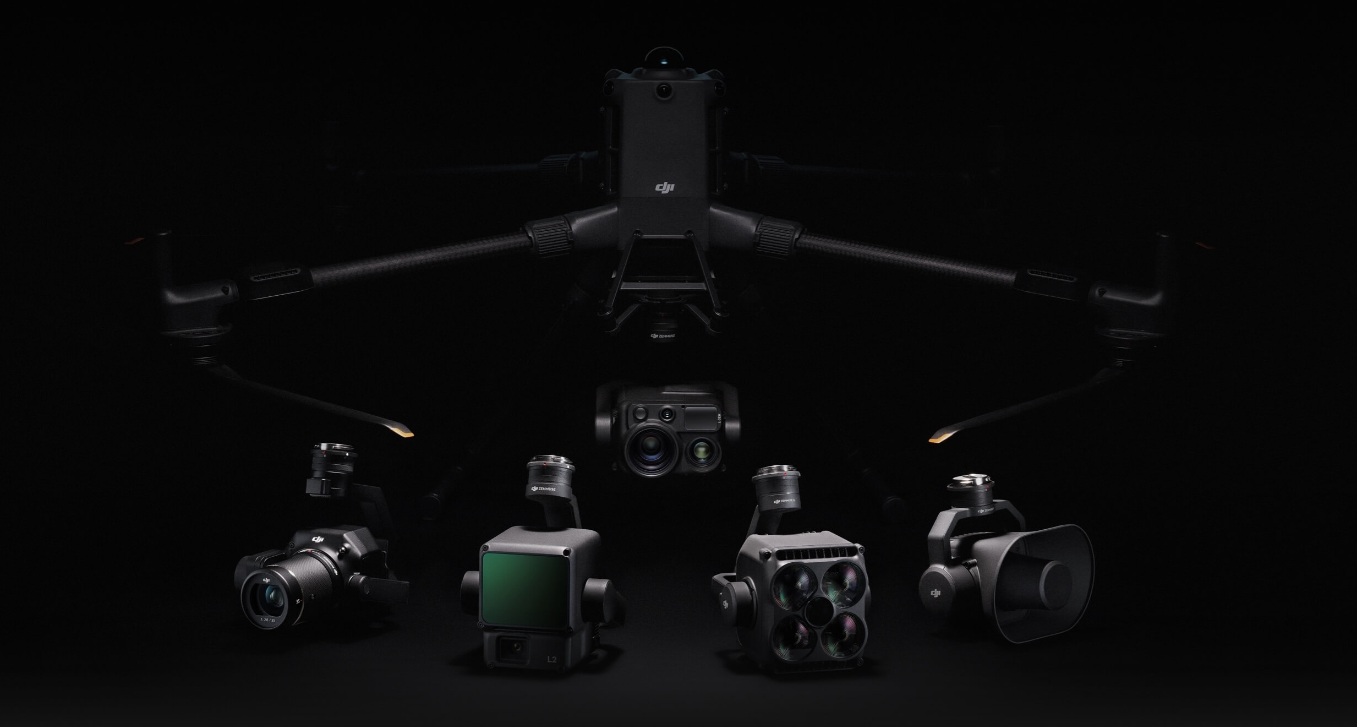

The DJI Matrice 400 has a maximum payload capacity of 6kg and can carry up to seven payloads simultaneously. It features a versatile combination of gimbal mounts (single, dual, or triple downward) and four E-Port V2 connectors, allowing for a wide range of sensors and accessories like mapping cameras, thermal sensors, spotlights, and speakers to be mounted at once. This high capacity and flexibility support various industrial applications, including mapping, inspection, and public safety.
Zenmuse P1 integrates a full-frame sensor with interchangeable fixed-focus lenses on a 3-axis stabilised gimbal. Designed for photogrammetry flight missions, it takes efficiency and accuracy to a whole new level.
Zenmuse L2 integrates frame LiDAR, a self-developed high-accuracy IMU system, and a 4/3 CMOS RGB mapping camera, providing DJI flight platforms with more precise, efficient, and reliable geospatial data acquisition.

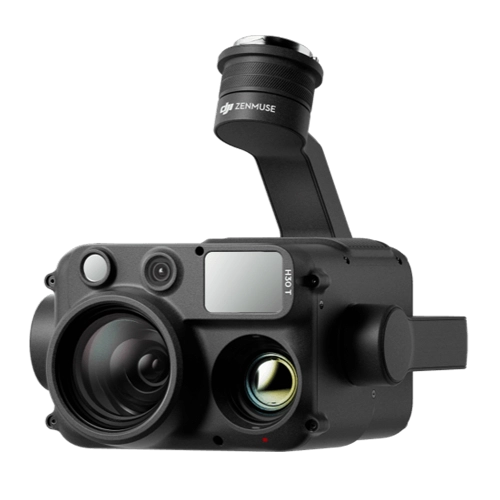

The Zenmuse H30 Series uses a combination of five sensors—wide-angle, zoom, thermal, laser rangefinder, and NIR auxiliary light—to achieve superior day and night vision through advanced intelligent algorithms.
DJI’s first spotlight for multi-payload drones, using LEP technology to provide powerful illumination for nighttime operations like public safety, emergency rescue, & inspections. It features high brightness, a long illumination distance, and multiple lighting modes.

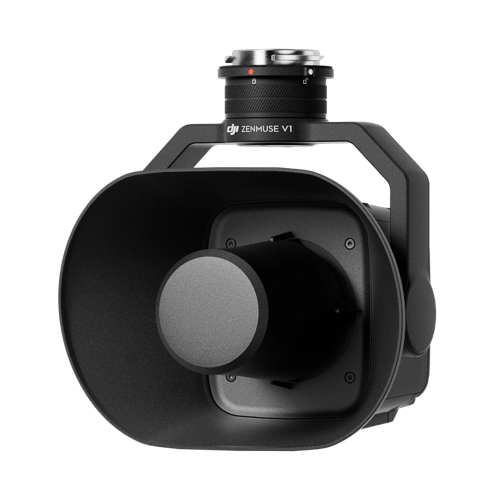

The Zenmuse V1 is an innovative loudspeaker for drone payloads, featuring high volume, long-distance broadcasting, and multiple operational modes, making it suitable for public safety and emergency rescue operations.

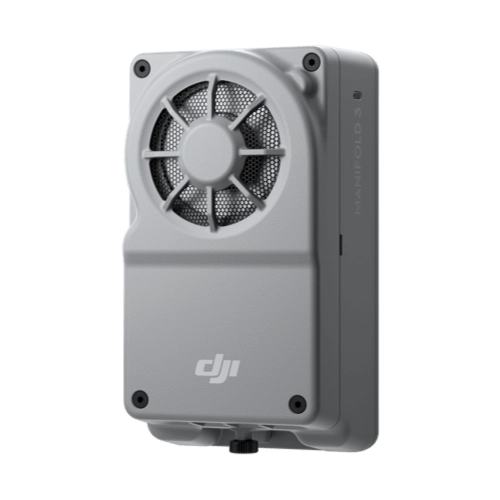

A compact and powerful processing unit that provides 100 TOPS of compute power for the Matrice 400 drone. Its lightweight design, weighing around 120g, improves drone efficiency for various tasks by offering robust processing capabilities.
Intelligent Algorithm Developer
Provides the necessary model training tools and third-party developer certification process to access onboard computing capability, helping to expand new application fields for drones.
PSDK
The newly upgraded E-Port V2 supports USB 3.0 high-speed payload communication and delivers up to 120 watts of power per port. The E4 port of the E-Port V2 can be expanded into four payload ports via the E-Port Hub expansion plate, unlocking broader application scenarios and greater potential for the Matrice 400.
MSDK
Mobile SDK 5 simplifies the development of apps to control the Matrice 400. It comes with fully open-source, production-level code samples with core modules adapted from DJI Pilot 2, guaranteeing high reliability.
Cloud API
With DJI Pilot 2’s built-in Cloud API (MQTT-based protocol), you can directly connect the Matrice 400 to third-party cloud platforms. Access the drone’s hardware, video live-stream, and photo data without having to develop an app.
Open Data Access
Developers can leverage payload, LiDAR, mmWave radar, and vision sensor data interfaces to build innovative applications and expand the DJI ecosystem.
Geospatial drone solutions provide highly accurate digital deliverables for managers, surveyors and engineers, improving operations throughout the project lifecycle.
Drones enable timely decision-making, cost savings, enhanced personnel safety, and optimal efficiency through aerial data collection.
Cadastral Survey
Boost the efficiency of land administration and cadastral processes by using high-accuracy UAS solutions to quickly generate digital models
Drone inspections provide accurate data readings of critical structures or components. Through visual and thermal imagery, drones provide comprehensive information for targeted maintenance efforts and improved operational efficiency.
Electricity
Manage electrical grids and plants with drone solutions. Monitor construction, conduct inspections and maintenance with ease.
Oil and Gas
Revolutionising the oil and gas industry by enhancing efficiency in management, inspection, and construction, while reducing costs and driving technological innovation.
Renewables
Flexible and mobile, capable of automatically inspecting along flight paths, effectively ensuring personnel safety and increasing power generation revenue.
Infrastructure
Optimise infrastructure inspection and maintenance work with accurate aerial inspections. Digitised records and efficiently track the condition of buildings and roofs through visual and thermal data capture and analysis.

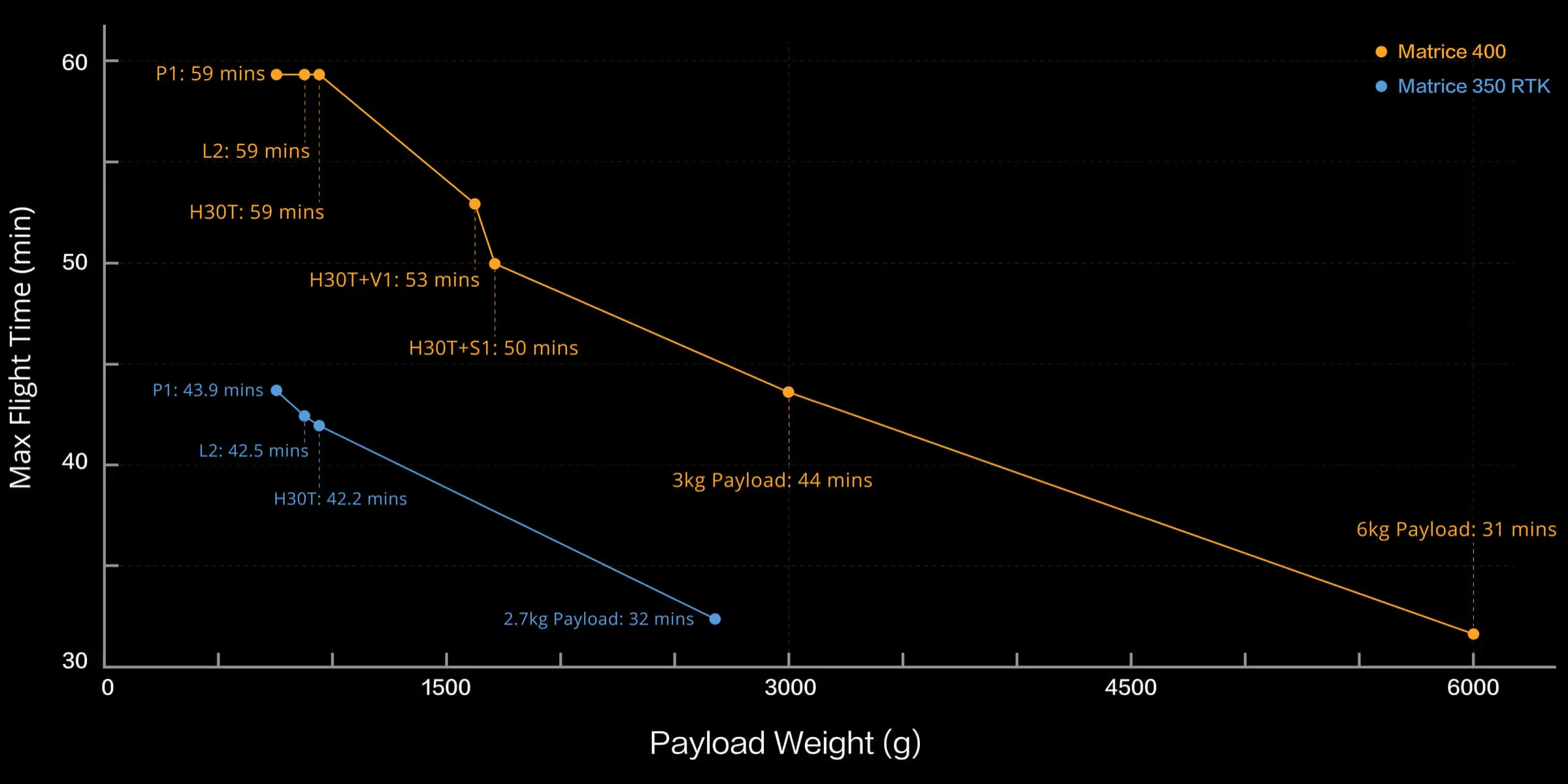

Estimate the Matrice 400’s flight time based on payload configuration.
What is the maximum flight time?
The Matrice 400 can fly for up to 59 minutes.
What is the maximum payload capacity?
It can carry a maximum payload of 6 kg.
How many payloads can it carry at once?
It can support up to seven payloads simultaneously, depending on the configuration.
What is the maximum wind speed it can withstand?
It has a maximum wind speed resistance of 12 m/s.
Can the DJI Matrice 400 operate in extreme temperatures?
Yes, it is designed to operate in temperatures from -20C to 50C.
How does the obstacle avoidance system work?
It uses a combination of omnidirectional binocular vision, upward-facing LiDAR, downward 3D infrared sensors, horizontal rotating LiDAR, and mmWave radar for six-directional detection.
What is the maximum transmission range?
The O4 Enterprise system can transmit video up to 40 km under ideal conditions.
How does it handle long-range missions?
It can act as a relay drone to extend operational range, and it supports the use of two cellular dongles to maintain a stable signal.
Can I fly the drone in the rain?
The ingress protection rating is IP55 rated. Do not fly in rain heavier than 100 mm/24 hr.
The IP rating is not permanently effective and may decrease due to product wear and tear.
Maximise the potential of your DJI drone with our industry-leading photogrammetry and mapping software solutions. Process your data with confidence and generate accurate deliverables.
Integrate Lidar and office processing. Topo mapping through vegetation, powerlines, applications beyond photogrammetry.
Complete Drone in a box solution including hardware and software for multiple applications. A drone solution at your fingertips.
