DJI ZENMUSE L3 LiDAR

Meet the DJI Zenmuse L3, the ultimate long-range aerial LiDAR system built for the modern surveyor. By combining a 950m scanning range with dual 100MP mapping cameras, the L3 captures complex environments with centimetre accuracy and stunning visual clarity.

From data capture to processing via DJI Terra, this integrated payload streamlines your workflow, delivering dense, colourised point clouds faster than ever before.

Talk to Sales

FEATURES

Up to 950m Scan Range

Dual 100MP Mapping Cameras

Up to 16 Returns

Up to 2Mhz (2 Million) Points Per Second Laser Pulse Rate

Accuracy at 120m Flight Altitude:

High Accuracy IMU

Improved (smaller) Beam Divergence vs the L2

RTK and PPK

With a faster scan rate, 16 returns and a smaller beam divergence than the L2, the L3 can cover more area and read more ground points below vegetation than the L2.

ACCURACY MEETS EFFICIENCY

DJI Zenmuse L3: a high-precision LiDAR payload optimised for the Matrice 400 that delivers superior point cloud accuracy and up to 100km² of daily coverage—ideal for seamless, large-scale surveying.

ENHANCED INTELLIGENCE AND EFFICIENCY

Hardware Performance Redefined

The Zenmuse L3 combines 1535nm wave-length long-range LiDAR, dual 100MP RGB cameras, and a high-precision POS system into a compact three-axis gimbal, delivering performance that defies its size.

950m Long-Range LiDAR

Long Range, Wide Coverage

The Zenmuse L3 achieves an impressive 950m detection range—even on objects with just 10% reflectivity—ensuring reliable performance under bright ambient light. With an adjustable pulse rate to optimise power output for diverse scenarios, the L3 supports typical flight altitudes of 300 to 500m. This capability significantly expands single-flight coverage, maximising mapping efficiency across large areas.

Small Spot, High Energy

Featuring a reduced beam divergence of just 0.25 mrad (1/e²), the Zenmuse L3 creates a laser spot size roughly one-fifth that of the Zenmuse L2. This precision allows it to capture fine details, such as power lines and tree branches, with exceptional clarity. Furthermore, the concentrated energy density enhances vegetation penetration, delivering denser ground points for accurate terrain reconstruction in complex environments.

High Pulse Rate, Multiple Returns

Delivering a maximum pulse emission frequency of 2 million pulses per second and supporting up to 16 returns, the Zenmuse L3 ensures exceptional spatial reconstruction. This power is fully adaptable; operators can adjust point cloud density and penetration capabilities to match the specific demands of the mission, from high-precision mapping to surveying complex, vegetated environments.

Scanning Modes

The Zenmuse L3 adapts to diverse operational scenarios with three specialised scanning modes:

Linear Mode: Delivers uniform point cloud distribution, making it the ideal choice for high-accuracy terrain mapping.
Star-Shaped Mode: Offers a balance of multi-angle scanning and penetration power, perfect for surveying forests or dense urban environments.
Non-Repetitive Mode: Maximises scan angles and coverage, ensuring detailed capture of complex structures like power lines.

DUAL 100MP RGB MAPPING CAMERA SYSTEM

Previous Next

Dual 100MP RGB Mapping Cameras

Equipped with dual 100MP 4/3 CMOS RGB sensors and a mechanical shutter, the Zenmuse L3 significantly elevates both accuracy and efficiency. The system utilises pixel binning to deliver an effective 25MP resolution with larger individual pixels, ensuring superior colour reproduction and image clarity even in low-light conditions.

107° Ultra-Wide FOV

With an expansive 107° horizontal field of view (FOV), the dual RGB mapping cameras maximise coverage in every shot. This wide perspective allows operators to capture data for both Digital Orthophoto Maps (DOM) and Digital Elevation Models (DEM) in a single flight—even with a minimal 20% LiDAR side overlap—drastically boosting operational efficiency.

The Zenmuse L3 sets a new benchmark for aerial surveying by enhancing point cloud and RGB precision while redefining operational speed.

Optimised for the DJI Matrice 400, this system enables up to 10km² of coverage in a single flight and up to 100km² per day. This integration ensures high-accuracy results for large-scale projects through a unified, efficient workflow.

HIGH ACCURACY

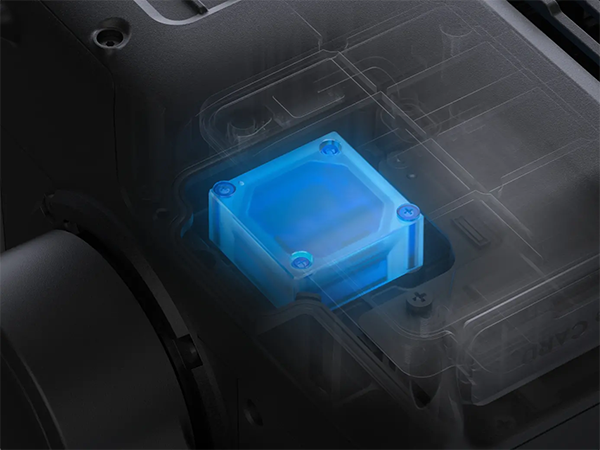

Proprietary High-Precision System

The upgraded high-precision POS system ensures exceptional orientation accuracy, achieving 0.02° heading and 0.01° pitch precision (post-processed). Complementing this, the self-developed LiDAR module delivers a ranging repeatability of 5mm at 150m, supported by microsecond-level time synchronisation. To guarantee consistent, survey-grade performance, every unit undergoes rigorous factory calibration.

LiDAR Data Accuracy

The Zenmuse L3 maintains exceptional vertical accuracy across various altitudes—better than 3cm at 120m, 5cm at 300 m, and 10cm at 500m. These capabilities allow it to easily satisfy requirements for 1:500, 1:1000, and 1:2000 scale mapping projects. Additionally, the L3 produces a point cloud thickness just half that of the Zenmuse L2, delivering cleaner data for advanced analysis and high-precision applications.

High Penetration

High Ground Point Density

Combining a smaller laser spot with higher single-pulse energy, the Zenmuse L3 offers superior penetration through vegetation. This allows for the capture of a denser, more complete array of ground points, ensuring exceptional data integrity for precise surface fitting and terrain reconstruction.

Photogrammetric Accuracy

Powered by dual 100MP RGB mapping cameras, the Zenmuse L3 captures exceptional detail, achieving a Ground Sample Distance (GSD) of 3cm even at flight altitudes of 300m. Furthermore, real-time position synchronisation allows for high-precision mapping without the need for Ground Control Points (GCPs), significantly streamlining the surveying workflow.

High Efficiency

Up to 100km² per Day

When integrated with the DJI Matrice 400, the Zenmuse L3 delivers outstanding operational efficiency. A single flight at 300m altitude covers up to 10km², allowing operators to achieve a daily mapping capacity of up to 100km².

Multiple Deliverables in a Single Flight

In a single mission, the system records both LiDAR and RGB data to produce diverse mapping deliverables, such as Digital Elevation Models (DEM), Digital Orthophoto Maps (DOM), and more.

DATA ACQUISITION

Previous Next

Point Cloud Result Preview

DJI Pilot 2 streamlines pre-flight operations by intelligently recommending parameters based on user-defined routes. Additionally, it generates Density Profile and point cloud distribution charts, enabling users to preview the projected point cloud results and ensure coverage prior to launch.

Power Line Follow

The Zenmuse L3 significantly enhances Power Line Follow capabilities, supporting operations at altitudes up to 130 m. By eliminating the need to bypass obstacles or cross lines, the system enables complete electrical corridor data acquisition in a single, straight flight path for most scenarios.

Flexible Split-Screen View

DJI Pilot 2 features a versatile split-screen capability, allowing operators to simultaneously view any two data sources—point cloud, RGB, or Vision Assist—tailored to their specific needs. To enhance situational awareness during Power Line Follow or downward-facing mapping, Vision Assist provides a real-time forward view, significantly reducing flight risks and improving overall safety and efficiency.

Real-Time Point Cloud

Supports real-time SLAM reconstruction with live 2D/3D point cloud previews and in-flight measurement tools. To streamline collaboration, point cloud results sync instantly to DJI FlightHub 2, providing the speed and connectivity required for urgent emergency assessments.

Cloud-Based Point Cloud Measurement

Seamlessly integrated with DJI FlightHub 2, the Zenmuse L3 allows for real-time visualisation and management of point cloud data. Users can effortlessly generate precise flight routes, annotate and share critical points of interest, and execute advanced line and area measurements—all directly within the cloud platform.

PPK Data processing

With built-in PPK support for D-RTK 3 and standard base stations, DJI Terra delivers reliable accuracy anywhere. The platform handles local PPK for both RGB and LiDAR, providing centimetre-level positioning even when network connections or real-time RTK are unavailable.

LiDAR Gaussian Splatting

DJI Terra unlocks new levels of realism through Gaussian Splatting fusion. This technique combines Zenmuse L3 point clouds with RGB imagery to produce incredibly detailed, lifelike 3D models. This leap in visual quality broadens the operational scope of LiDAR, delivering superior outputs suitable for the most demanding mapping scenarios.

Fusion-Based Modelling

Streamline your workflow with DJI Terra’s advanced integration capabilities. By fusing LiDAR and RGB data from a single mission, the platform produces point clouds, 2D maps, and 3D meshes concurrently. This results in significantly richer models with superior detail on complex geometries, serving the critical needs of infrastructure, energy, and transportation professionals.

Data Processing

Data Application

Smart Filter

DJI Modify utilises advanced semantic classification to automatically distinguish point cloud data into categories like ground, vegetation, buildings, and power infrastructure. Post-classification, users can leverage the Quick Selection and Structure Selection tools to efficiently adjust categories, ensuring maximum classification accuracy and operational efficiency.

Profile Tool

Use DJI Modify’s Profile tool to flexibly isolate cross-sections for analysis. This feature provides an intuitive way to examine terrain variation, elevation profiles, and detailed structural features within your model.

Comprehensive Output Capabilities

Together with DJI Modify, the Zenmuse L3 delivers exceptional output versatility. The platform automates the creation of semantic point clouds, DEMs, TINs, point grids, and contour lines. With multi-layer visualisation support, these results are ready to meet the diverse needs of modern engineering and CAD workflows.

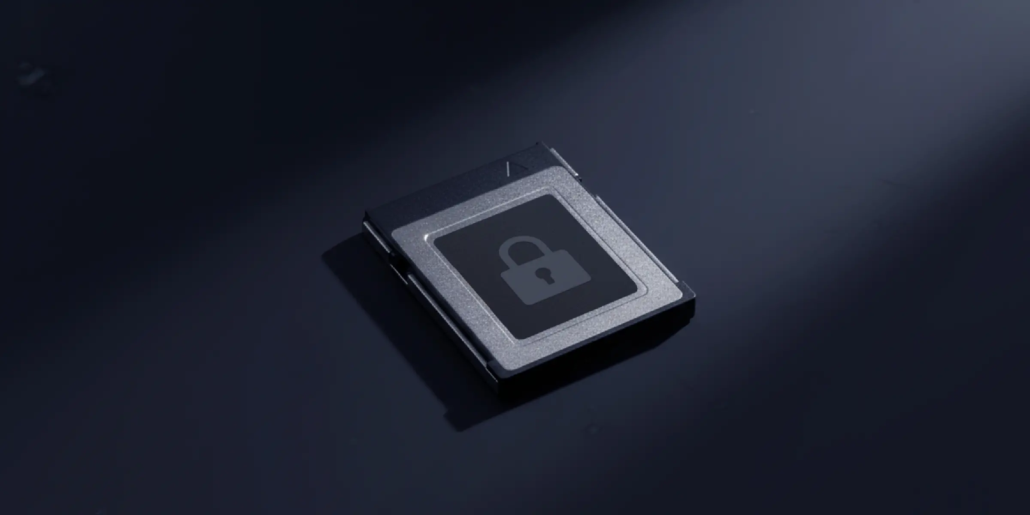

Data Security

Ensure total confidentiality with advanced security protocols. The Zenmuse L3 prevents data theft through CFexpress™ card encryption, while the Matrice 400 protects transmission with AES-256 encryption and allows for instant, one-click log clearing.

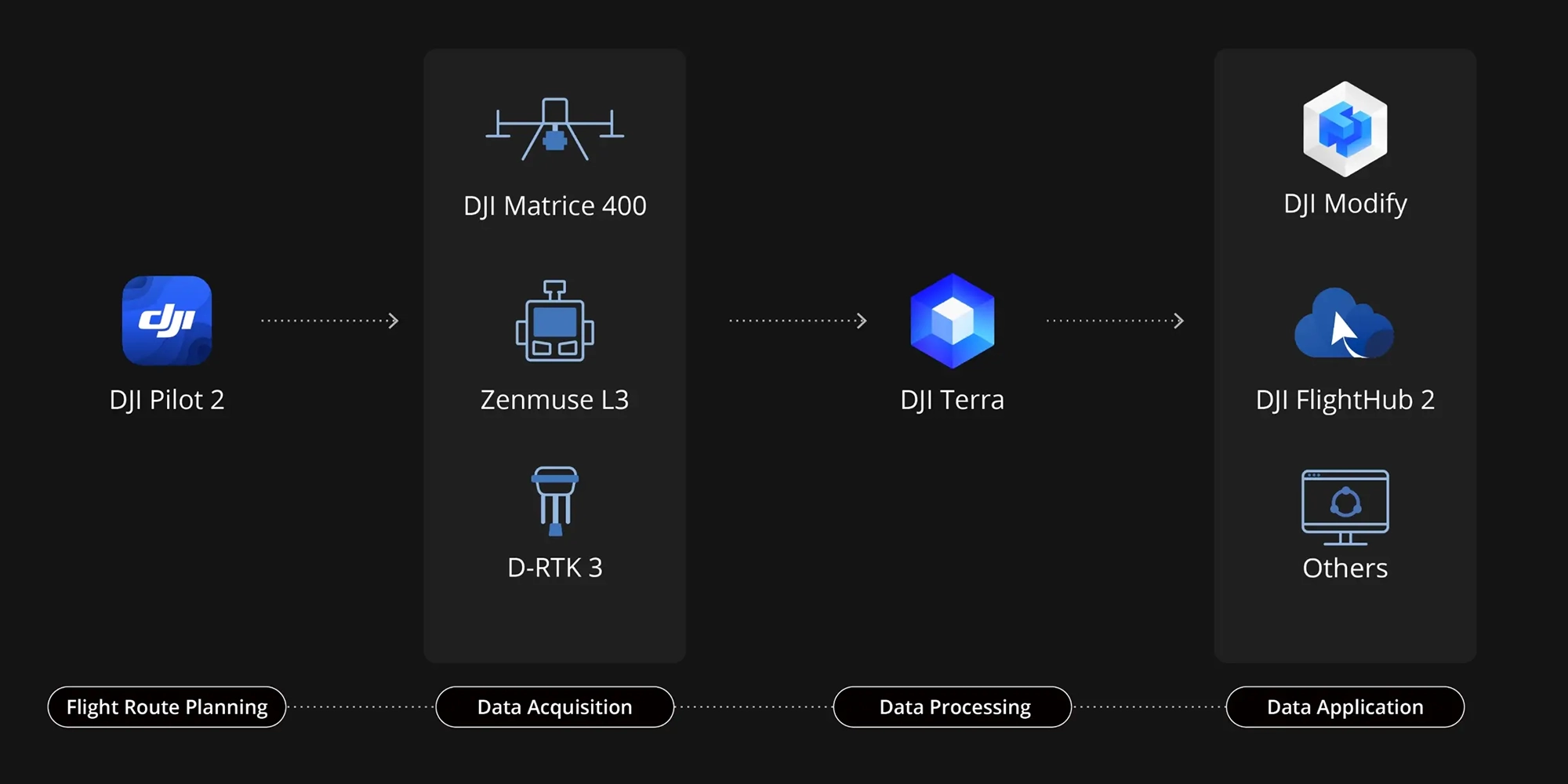

END-TO-END SOLUTION

Delivers a complete workflow covering data capture, processing, and application.

The Zenmuse L3 is the cornerstone of DJI’s complete end-to-end mapping ecosystem. By unifying data acquisition, processing, and application into a single seamless workflow, it eliminates the complexity of traditional multi-platform setups. This streamlined approach is easier to master and operate, empowering professionals to efficiently handle a diverse range of mapping missions.
